Subfossil trunks from the riverside gravel deposit of Suceava river

Outcropped subfossil logs have been sampled along the banks of the Suceava river (Fig. 1) since 2004. A disk sample (~5-10 cm thick) was sliced from each trunk using a chainsaw. Cross sections of the dried samples were mechanically sanded until tree-ring boundaries and characteristic wood anatomical details became clearly visible. Genus or occasionally species could be identified based on basic xylem characteristics. At the sampling sites, oak (Quercus sp.), elm (Ulmus sp.) and, very rarely, poplar (Populus sp.) have been observed, though oak samples are by far the most abundant (~66%). Poplar samples tend to deform severely after drying, so these samples were not processed. Altogether, 179 samples were collected: 118 oak and 61 elm. These latter, however, yielded significantly fewer tree rings (Fig. 2). There were five locations where relative concentrations of subfossil trunks were found (Fig. 1) within a relatively short distance (1-2 km), while an additional 23 samples (14 oaks and 9 elms) represent single findings collected from separate sites along the river during the past ~10 years. The species composition and the oak dominance are in agreement with other similar European subfossil driftwood assemblages (eg. Kolař and Rybniček, 2011; Carozza et al., 2014; Rădoane et al., 2015), although the relative abundance of elm to oak (1:2) is higher in this Suceava collection. Interestingly, this relative abundance seems to be a robust characteristic of the subfossil assemblages at every site (Fig. 2). As a final decision, due to their dominance and larger number of measurable tree rings, oak samples remained the central focus of the subsequent dendrochronological analysis.

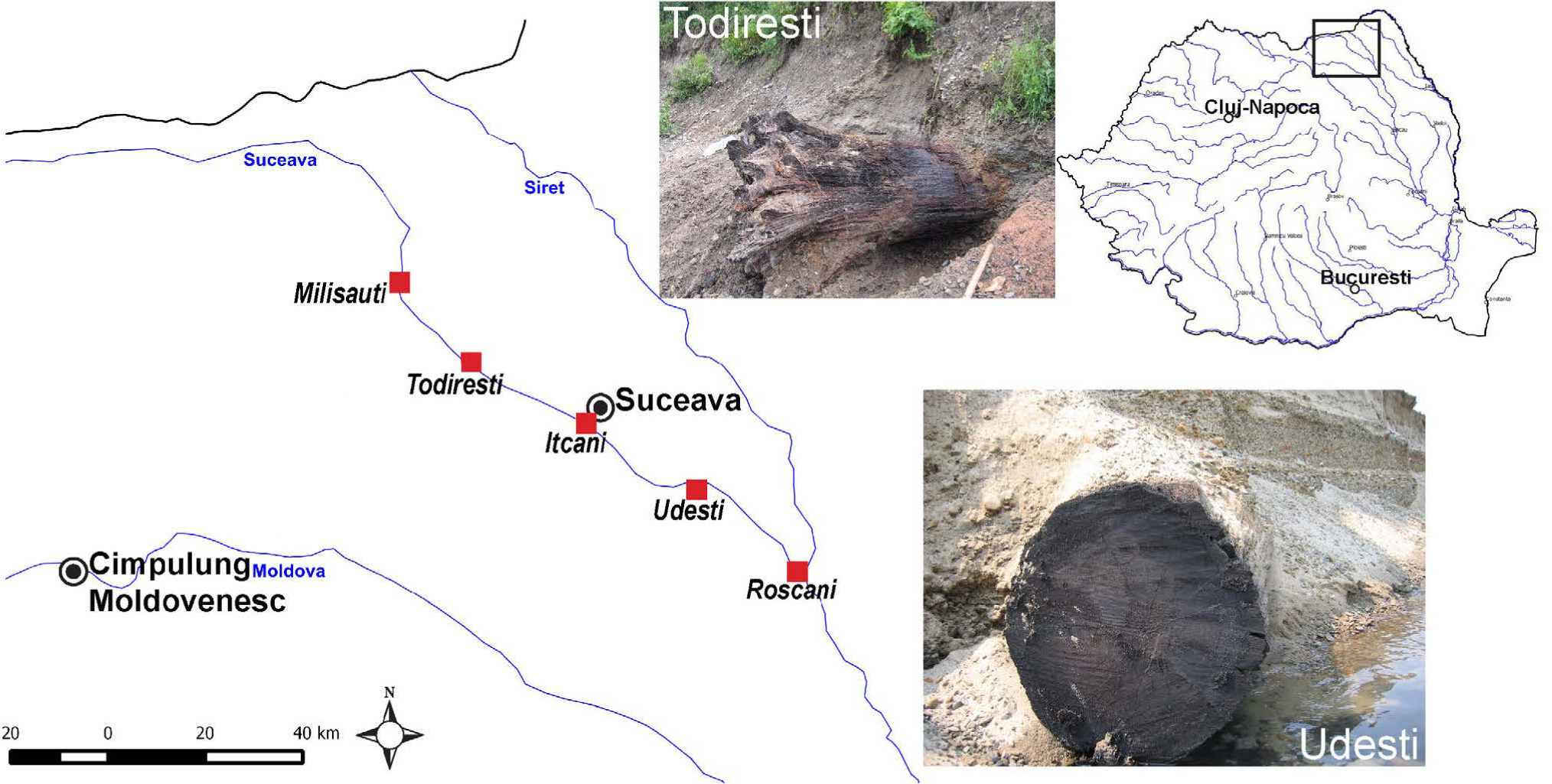

Figure 1

Location of the collection points (Milisauti, Todiresti, Itcani, Udesti, and Roscani) of fossil trunks along the Suceava river. The rectangle in the inset map shows the location of the enlarged region in Romania. The photos show typical samples: a freshly exposed embedded trunk at the Todiresti site (top) and a sawn section from Udesti (bottom).

Dendrochronological analysis

A LINTAB digital-positioning table and TSAP Win 4.68 software (Rinn, 2005) were used to measure the annual increments to a precision of 0.01 mm, as well as for cross-dating the growth series by meansof graphical comparison to each other. For each disk, two radii were measured and the series were checked for the correctness of measurements within the disks. Finally, the mean tree-ring series was determined for each disk and used in the analysis. Standard dendrochronological statistics, such as percentage of agreement (GLK%, Eckstein and Bauch, 1969) and modified t value (tBP, Baillie and Pilcher, 1973) were used to evaluate the cross-dating results.

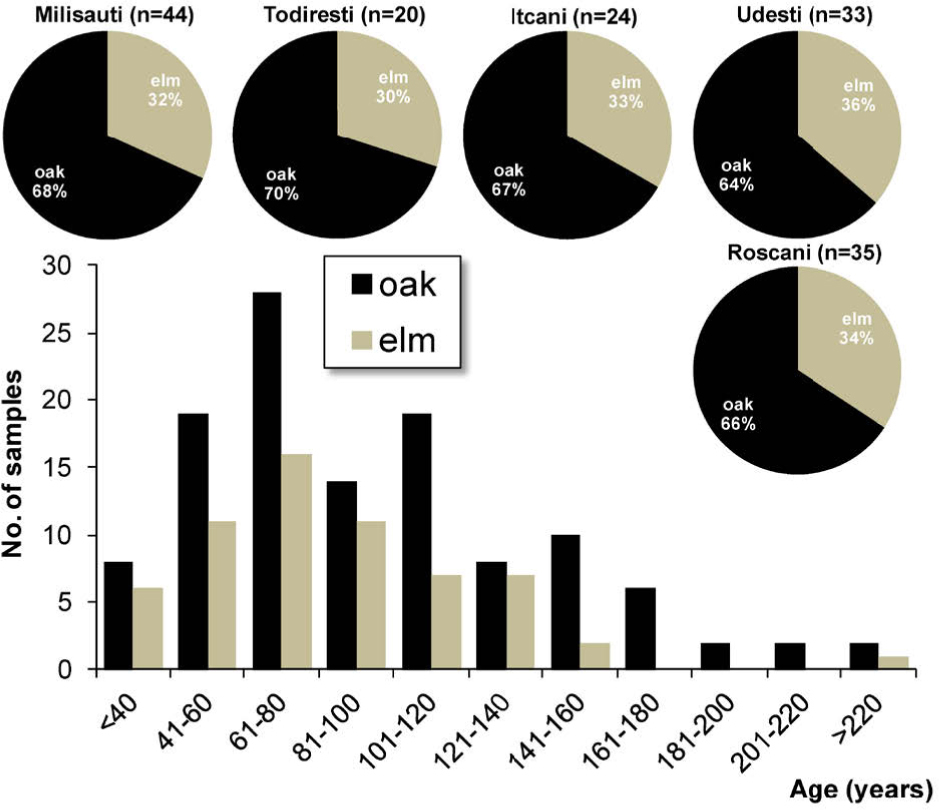

Figure 2

Age distribution histogram of subfossil oaks and elms from the Suceava river. Pie charts show the species composition at the five collection sites.

Radiocarbon measurement

Sample preparation and radiocarbon analysis were performed in the ¹⁴C lab of the Hertelendi Laboratory of Environmental Studies, Institute for Nuclear Research, Hungarian Academy of Sciences, Debrecen (Molnár et al., 2012). At an earlier stage of the research, two subsamples from the first successfully cross-dated doublet were analysed by gas proportional counting, while at a later stage four additional samples were analysed using accelerator mass spectrometry. The radiocarbon ages were calculated according to Stuiver and Polach (1977) using the Libby half-life (5568 years). Long-term performance of the Debrecen radiocarbon lab in international intercomparisons proved that the both systems produced excellent data and provided comparable results (Svingor et al., 2016). Although GPC measurement error was slightly greater compared to AMS, but in terms of accuracy, this method cannot stay away from the AMS measurements.

Small blocks containing 2 to 13 tree rings were sliced from the disks (Table 1). Radiocarbon analysis was performed on the extracted α-cellulose. For technical details on the applied α-cellulose separation method see Szántó et al. (2007).

Gas proportional counting

Samples were combusted to CO₂ in a controlled oxygen stream. Gaseous impurities (such as traces of NO_x) and excess O₂ unused during combustion were removed by passing the produced CO₂ through a hot Cu-furnace. The purified CO₂ was trapped in a stainless steel vessel using liquid nitrogen and measured using the gas proportional counting technique (Hertelendi et al., 1989). Correction for fractionation was achieved by measuring the δ¹³C_PDB value using a stable isotope ratio mass spectrometer (Thermo Finnigan Delta^plus XP) in dual-inlet mode.

Accelerator mass spectrometry

Measured targets were prepared using a sealed-tube graphitization method (Rinyu et al., 2013). The ¹⁴C/¹²C ratio and ¹³C/¹²C ratio were measured using accelerator mass spectrometry (AMS), with the application of an EnvironMICADAS ¹⁴C facility (Molnár et al., 2013a, 2013b). Measurement time and conditions were set to collect at least 200,000 net counts for every single target in the case of a modern sample. The overall measurement uncertainty for a modern sample is < 3%∘, including normalization, background subtraction, and counting statistics.

The radiocarbon ages were corrected for isotope fractionation using the AMS measured δ¹³C, which accounts for both natural and machine fractionation.

Calibration

The calibration of ¹⁴C dates to calendar years was performed using the OxCal v.4.2 (Bronk Ramsey, 2009) program in conjunction with the Northern Hemisphere IntCal13 (Reimer et al., 2013) dataset. Calibrated ages are reported with two standard deviations (2σ).

The so-called wiggle-matching technique (Bronk Ramsey et al.,2001) was employed in the calibration of radiocarbon results obtained from dendrochronologically cross-dated tree-ring sequences using the D_Sequence function of the OxCal v.4.2 (Bronk Ramsey, 2009) program. This means that, thanks to precise a priori knowledge provided by the dendrochronological synchronization, i.e. the exact number of tree-rings between the blocks subjected to radiocarbon measurements, the radiocarbon counting errors are minimized, and this allows for dating with considerably higher accuracy than in case of single radiocarbon measurements (Pearson, 1986).

Dendrochronological synchronization

Very few (fewer than 10 samples) had bark or sap-wood tree-rings, and these were mainly small size samples. The countable tree rings ranged from 23 to 228 with a mean of 96 tree rings for the black oaks studied. This range and the corresponding distribution pattern (Fig. 2) suggest a younger population compared to the findings usually reported in the broader region (e.g. Gębica and Krąpiec, 2009; Vitas et al., 2014).

Five synchronized groups could be identified, encompassing 2 to 4 samples and spanning from 81 to 228 years (Fig. 3). Unsurprisingly, successfully matched series usually came from samples collected at the same locality. Four series from the Milisauti site were matched into a 218-year long floating chronology (Fig. 3a). Three series, including the two longest ones, were matched into a 228-year long floating chronology from the Roscani collection (Fig. 3b). The only synchronized group containing series from trunks excavated at different sites was the one including SV153&SV159 from Milisauti and SV310 from Itcani (Fig. 3c), representing a 185-year floating chronology. Finally, two floating chronologies were developed at Itcani near to the city of Suceava. The shorter one contains three series spanning 81 years (Fig. 3d), while a synchronized doublet covers 175 years (Fig. 3e).

The rather low rate of cross-date success (i.e. 15 matches out of 118 samples: ~13%) is far below the Polish standard (Krąpiec, 2001), that recently reported from a Belarusian site (Vitas et al., 2014), and from three Croatian sites located along the Sava river and its tributaries (Pearson et al., 2014). Hardly better synchronization success rates, however, have been reported for certain black oak assemblages from the Czech Republic (Kolář and Rybní ček, 2011), for instance. Regarding only the series with more than 80 tree-ring data, as Vitas et al. (2014) did, the rate of cross-dating success is higher (~17.5%), although it is still far below those cited above.

It is worth mentioning that no series were successfully synchronized from two sites, Todiresti and Udesti. The explanation for Todiresti may be that the age composition of the collected samples at this site was skewed toward the young end. Only four samples were available from Todiresti in which tree ring counts exceeded 100, and even the longest record counted only 133 tree rings. The lack of successful dendrochronological synchronization has also been explained by the small number of tree rings at certain Czech sites (Kolář and Rybní ček, 2011). In addition, no series were successfully synchronized representing single trunks collected from separate sites along the river.

These experiences underline the better potential for successful synchronization when larger set of samples can be collected from the same stratigraphic unit, because we can suppose that trunks from the same stratigraphic unit represent the same deposition event, therefore the buried trunks are more likely to be coeval and eroded from a nearby locality.

The occurrence of multiple logs does not guarantee a successful cross-dating, since the redeposition of trunks in alluvia due to lateral migration of a river channel is also well-documented (Kalicki and Krąpiec, 1995). This process can result in subfossil driftwood clusters with very heterogeneous age distribution.

Radiocarbon calibration

Two ¹⁴C results were available from the shorter Itcani chronology (Table 1, Fig. 3d), representing the oldest samples so far retrieved from Suceava fluvial deposits. The calibrated age ranges of SV118 and SV133 largely overlap (Table 1). This provides independent evidence confirming their close age and probably overlapping lifespan. In other words ¹⁴C results do not contradict the good synchronization obtained relying on dendrochronological cross-dating statistics.

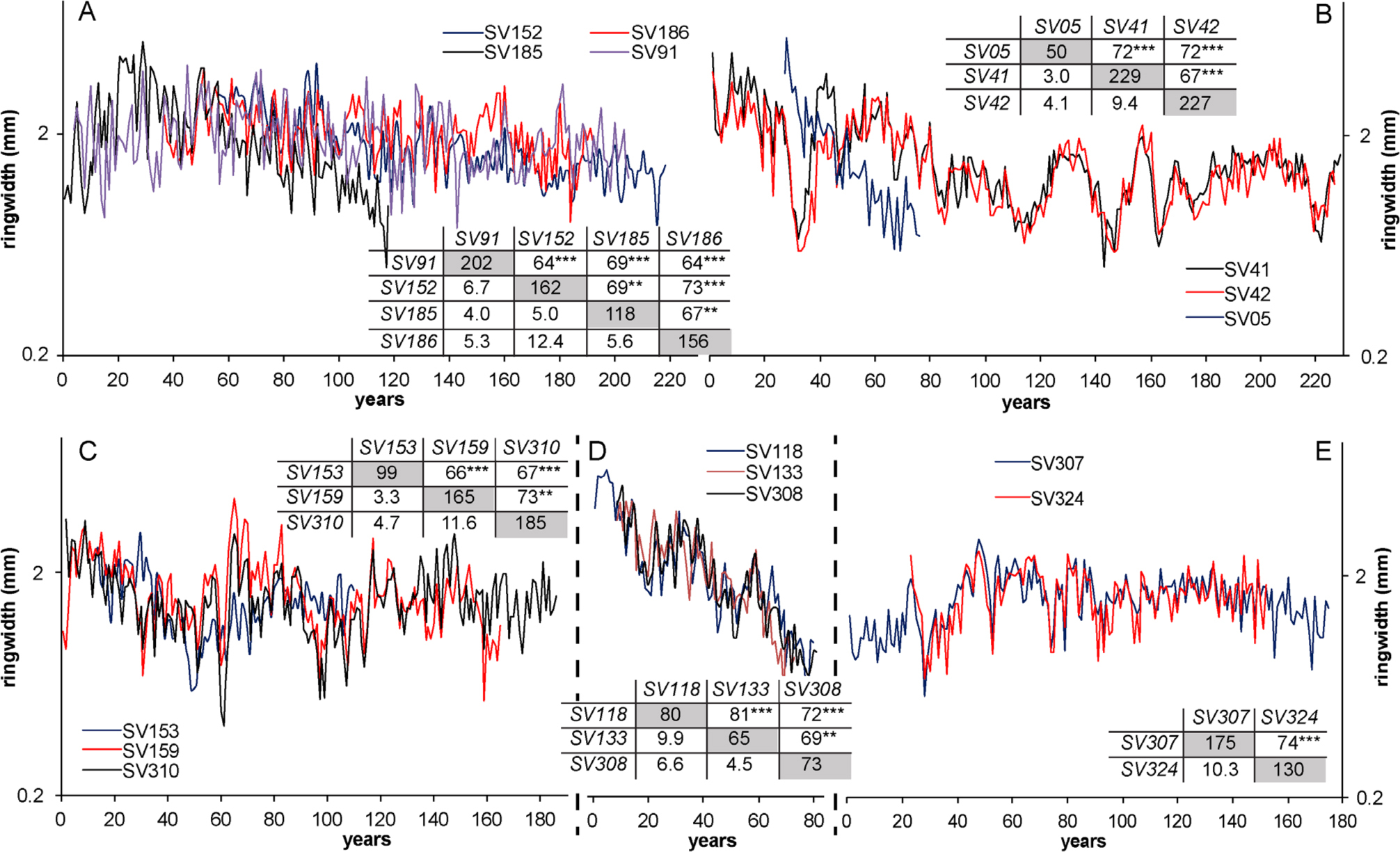

Figure 3

Synchronized tree-ring width series of subfossil oaks collected along the Suceava river. A: Milisauti, B: Roscani, C: Milisauti & Itcani, while the series in D and E were obtained from Itcani. Basic synchronization statistics are shown in inset tables. The lengths of the series are given with a gray background along the diagonal, whereas percentage of agreement (GLK%, Eckstein and Bauch, 1969) and t_BP (Baille and Pilcher, 1973) are shown above and below the diagonal, respectively.

Two ¹⁴C results were also available from the Roscani chronology (Table 1, Fig. 3b). In this case, however, the two blocks of tree rings were extracted from the same sample (SV41). Interestingly, the radiocarbon dates place this chronology in the youngest cohort so far collected from the Suceava fluvial deposits.

In addition, the wiggle-matching procedure constrained the single-sample calibrated ranges to a remarkable degree (Table 1). The overall series OxCal agreement indices (A_comb) were 84.2% and 77.9% for SV118&SV133 and SV41/1&2, respectively, and these proved to be satisfactory.

There were an additional 21 and 131 countable tree rings in the crossdated sequences after the blocks removed for radiocarbon analysis in the Itcani (SV118-133-308) and Roscani (SV05-41-42) chronologies, respectively. Regarding these additional tree rings, and following the radiocarbon dated blocks, the ¹⁴C wiggle-match estimate of the last measured tree ring in the Itcani chronology seems to be ~6230-5990 yr cal BP and in the Roscani chronology ~749-709 yr cal BP (95.4% confidence level).

A single ¹⁴C result was available from the chronology which included samples from Milisauti and Itcani (Table 1, Fig. 3c). Its calibrated 95.4% probability range is split up into two intervals with practically equal likelihood: 2350-2300 yr cal BP or 2250-2150 yr cal BP.

The final ¹⁴C date was derived from a single sample from Milisauti (SV191), and its calibrated 95.4% probability range overwhelmingly points to the 3720-3560 yr cal BP period.

Regional comparisons

The radiocarbon results provided solid evidence that subfossil oak material -and this is very likely valid for subfossil elm material as well-can be found in the Suceava fluvial deposits back to ~6300 years ago. In addition, some interesting patterns were observed when the temporal distribution of the Suceava floating oak chronologies were compared with the radiocarbon dates published in studies on late Holocene fluvial activity of two nearby rivers (Chiriloaei et al., 2012; Rădoane et al., 2015), namely the Siret and Moldova (Fig. 4).

There are two periods, ~0.9-0.7 ka cal BP and ~3.7-3.6 ka cal BP, when the deposition of oak megafossils may be presumed to have taken place simultaneously in the three river systems (Fig. 4), suggesting a region-wide event. These are quite remarkable periods within the Holocene population dynamics of Quercus sp. in the region (Feurdean et al., 2011). High resolution pollen records show abrupt changes in oak abundance around 0.8 ka. Regarding the second period, a decline has been documented in oak pollen percentages at low elevation Eastern Carpathian sites, while Quercus pollen accumulation rates display a pronounced peak simultaneously in NW Romania (Feurdean et al., 2011).

There are two additional periods around 2.3-2.1 ka cal BP and 6.2-6.0 ka cal BP when shared periods of oak trunk deposition can be seen in both the Suceava and Siret (Fig. 4). The first period predates an interval of minor decline in oak pollen percentages in most of the Eastern Carpathian records, while the second broadly coincides with the termination of a period with sustained high oak pollen percentages documented at most of the low elevation sites among the Eastern Carpathian and NW Romanian sites (Feurdean et al., 2011).

In the evaluation of the dendrochronological potential these periods may represent the most promising target periods for future cross-dating trials, since radiocarbon evidence highlights the availability of coeval wood material in the parallel river systems. With regard to its spatial distribution, the Roscani collection seems to be a well suited candidate, since Roscani is situated near the confluence of the Suceava and Siret rivers (Fig. 1), and numerous logs have been found in this section of the river Siret at the nearby Liteni village (Rădoane et al., 2015).

The objective weakness of the preliminary floating Suceava oak chronologies is their low replication. This might be overcome in future investigations by increasing the number of samples taken from sites with similar stratigraphy, and the inclusion of data from nearby rivers (the Moldova and Siret). To compensate for this, one strength might also be mentioned, namely that the terminal tree ring of the 228-year long floating Roscani chronology is within ca. 150 years of the earliest tree rings of the longest oak master chronologies from Romania (Eggertsson and Baboş, 2003; Botάr et al.,2008). This in turn raises the prospect of the expansion of the Romanian oak master chronologies with this subfossil oak material in the near future.

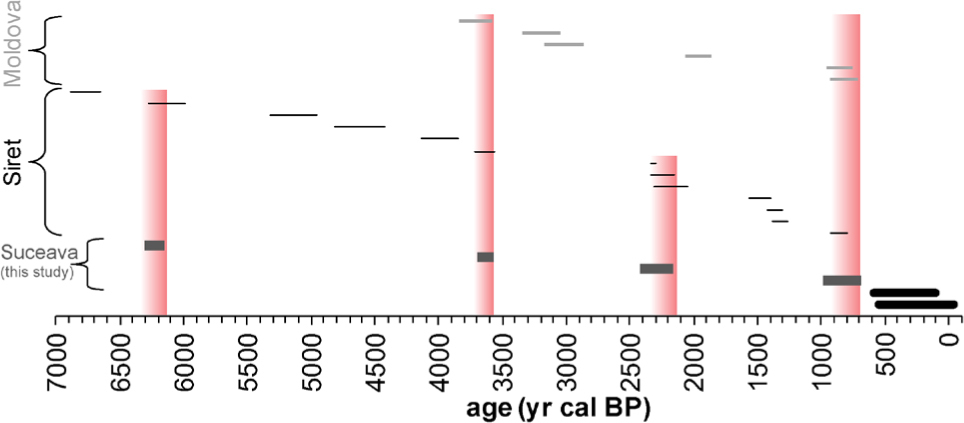

Figure 4

Temporal distribution of subfossil radiocarbon dated oak megafossils from three rivers from the Eastern Carpathian foothills. The thick gray bars represent the temporal coverage of the three radiocarbon dated floating chronologies and the single SV191 sample from the Suceava river. The chronologies were linked to the median value of the calibrated age range (this study). The thin bars represent the 2σ calibrated ranges of subfossil oak samples from Siret (black) and Moldova (gray) rivers (Data from Rădoane et al., 2015). Coinciding deposition events are marked by the shaded vertical stripes. The thick black bars (bottom right) show the temporal coverage of the two longest oak master chronologies available from Romania (Eggertsson and Baboş, 2003; Botár et al, 2008).
