Materials and methods

The study sites discussed are located in the Racibórz Basin (sensu Kondracki, 1998). According to data of System Informacji Przestrzennej o Mokradłach Polski (2006), 30 mires have been identified there, covering a total area of ca. 1,340 ha (i.e. approximately 1.1% of the area of the mesoregion). It should be noted that this list does not include the small (less than 10 ha) but quite numerous valley mires, which have mostly developed in oxbow lakes. It is precisely these mires that were the main focus of the studies conducted. In the course of many years, nearly thirty peat sequences from the Oder, Ruda, Kłodnica and Osobłoga River valleys were analysed (Wójcicki, 2000; Nita and Wójcicki, 2005; Wójcicki et al., 2010; Wójcicki, 2013). Pollen analysis was conducted for seven Late Glacial/Early Holocene mires; mid-Holocene hiatuses were identified in as many as five of those (including at the Chechło site in the Kłodnica River basin). The accumulation of deposits correlated with the Atlantic period using pollen dating was only confirmed for the Ujazd/Zandrzyny (between Łany Małe and Sławięcice in the Kłodnica River valley) and Żywocice (Osobłoga River valley) cores. Fossil HSDP were found at four sites, which are the subject of this article (Fig. 1). These include the small (0.9 ha) and shallow (up to 1 m) Ruda Kozielska fen developed in a Ruda River oxbow lake (Fig. 1A); the shallow and fairly extensive (about 11 ha) fen in Łany Małe that developed at the foot of the Kłodnica valley-sides (Fig. 1B); and the small (1.6 ha and 2.0 ha respectively), but relatively deep (up to 2.7 and 4.0 m) fens developed in the abandoned channels of the Kłodnica River, referred to as Sławięcice 1 (Fig. 1C) and Sławięcice 2 (Fig. 1D). A broader genetic and lithological description of the aforementioned mires is included in earlier publications (Wójcicki, 2000; 2013; Wójcicki and Kloss, 2008).

Fig. 1

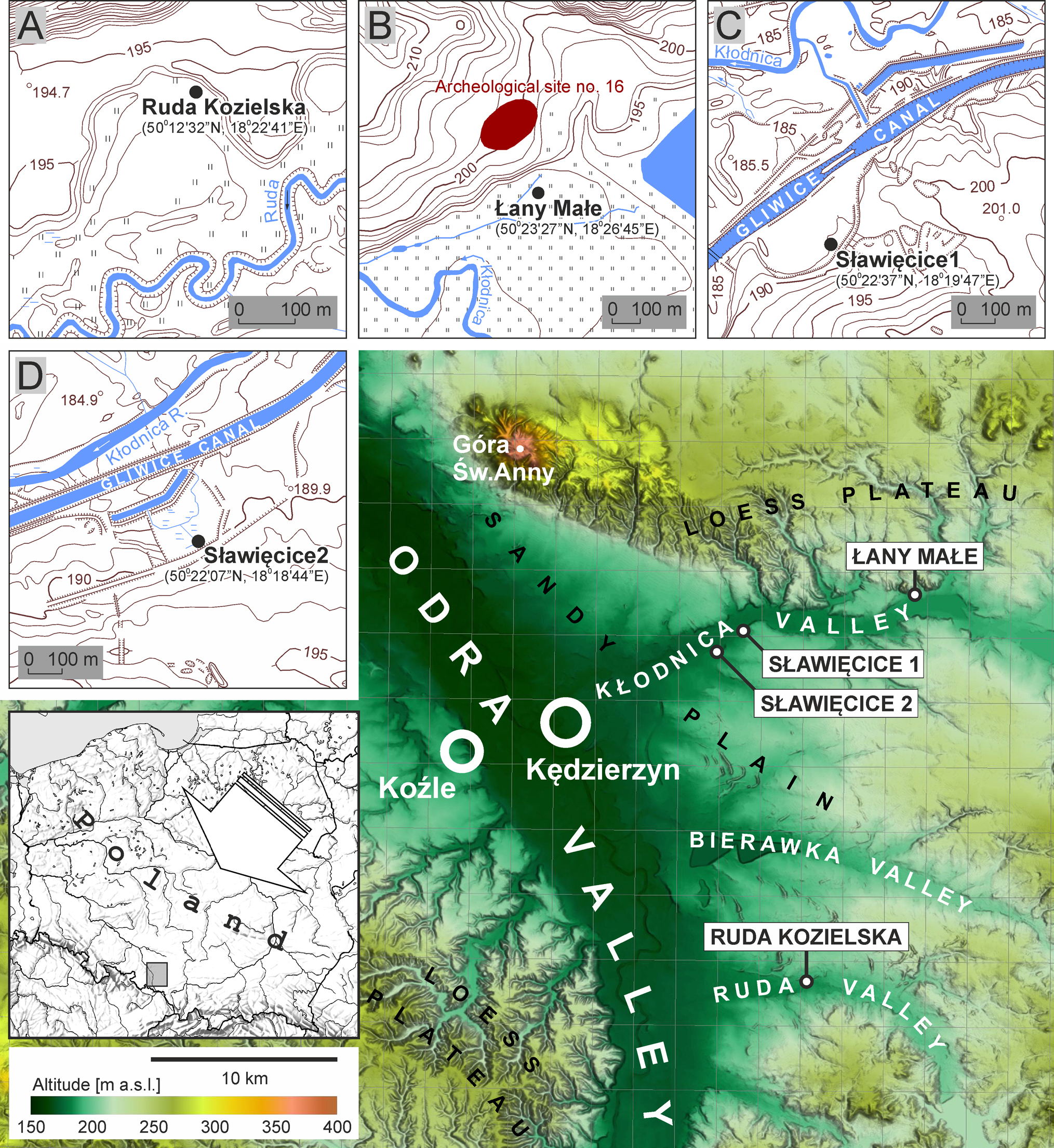

Location of the Ruda Kozielska (A), Łany Małe (B) Sławięcice 1 (C) and Sławięcice 2 (D) study sites.

During the field studies, HSDP were identified as intensively dark layers of amorphous peat (see Żurek et al., 2002). Drilling was undertaken at the individual sites, which confirmed the continuity of decomposed peat layers in the horizontal cross-section of the mires analysed. Sediment cores with intact structure were collected using a Russian D-Sampler. At the Sławięcice 2 site, the analysis included a sequence of deposits collected at a distance of about 10 metres from the thalweg zone in the paleochannel because the record of peat decay was the most visible in that zone (see Wójcicki, 2013). It should be noted at this point that the black colour of peat layers can also be related to a high concentration of sulphur compounds (total sulphur >5%). Such a case was identified at the Głogówek site in the Osobłoga River valley. Radiocarbon dating showed no break in the continuity of deposit accumulation at that depth (Wójcicki, 2013).

Laboratory methods were selected in order to verify the presence of HSDP in peat sequences (pollen analysis and radiocarbon dating) and to reconstruct the environmental conditions that accompanied their formation. Firstly, on the basis of lithologic features, the cores examined were divided into homogeneous sections, usually few centimetres thick. The origin of the deposits and the composition of the subfossil peat-forming communities were established on the basis of macrofossil analysis. The analysis covered both vegetative remains and carpological findings. Using the microscopic grid method, the percentage shares of amorphous organic matter and carbonised phytoclasts in peat were determined. Pollen analysis was used to describe vegetation changes on a regional scale and to assess the human impact on the environment in various phases of the Holocene. The presence of charcoal and carbonaceous dust that provided evidence of fires in the peatland area was observed during the analysis. Samples for pollen analysis were prepared using 10% KOH, 10% HCl, 40% HF and Erdtman’s acetolysis method (Faegri and Iversen, 1978). The calculation was based on the sum of tree and shrub pollen (AP) and of terrestrial herb and dwarf shrub pollen (NAP). Radiocarbon dating was used to determine the absolute age of deposits. Peat and wood samples as well as separate seeds were analysed by conventional beta counting or AMS methods at the Kyiv, Poznań and Gliwice Radiocarbon Laboratories (Table 1). The radiocarbon dates were calibrated using the OxCal 4.2.4 radiocarbon calibration programme (Bronk Ramsey, 2009) and IntCal13 atmospheric curve (Reimer et al., 2013).

Ruda Kozielska Site

In the Ruda Kozielska core, the greatest degree of decomposition is exhibited by peat at a depth of 60–51 cm. The deposits in question are black (10YR2/1 according to the Munsell Soil Color Charts) due to the presence of carbonised plant tissues and humic substances. A sedimentary discontinuity at a depth of 60–50 cm was reflected in the pollen analysis results. Abrupt changes in the percentage share of pollens (including that of Alnus and Poaceae pollen) can be observed in this zone (Fig. 2). For a deposit sample from a depth of 55–51 cm, which included alder root wood penetrating layers of degraded peat, the date 4690–4350 cal BC was obtained. Pollen spectra from this depth indicate the development of alder forests in the river valley and of mixed deciduous forests on inter-valley areas. Macrofossil composition documents the development of a forest swamp dominated by common alder (Fig. 3). Above the HSDP roof, silty alluvia are present which contain charcoals. In the overbank layer, an increase in the share of sedge epidermis was noted together with the encroachment of birch – probably a reflection of regeneration processes after a fire on the overdrying mire. The resumption of peat accumulation was dated to the turn of the Common Era (Table 1, Poz-23205). This occurred during late Holocene changes in the local forest communities, which were related, inter alia, to an increase in the share of oak, beech and hornbeam and the decline in importance of lime and hazel. Macrofossil analysis demonstrates that trees began to recede from the peatland. In their place, sedge communities developed on a large scale, which also included mosses, and habitat hydration increased, which is evidenced by the emergence of bioindicators of an aquatic environment (Chironomidae and Cladocera remains).

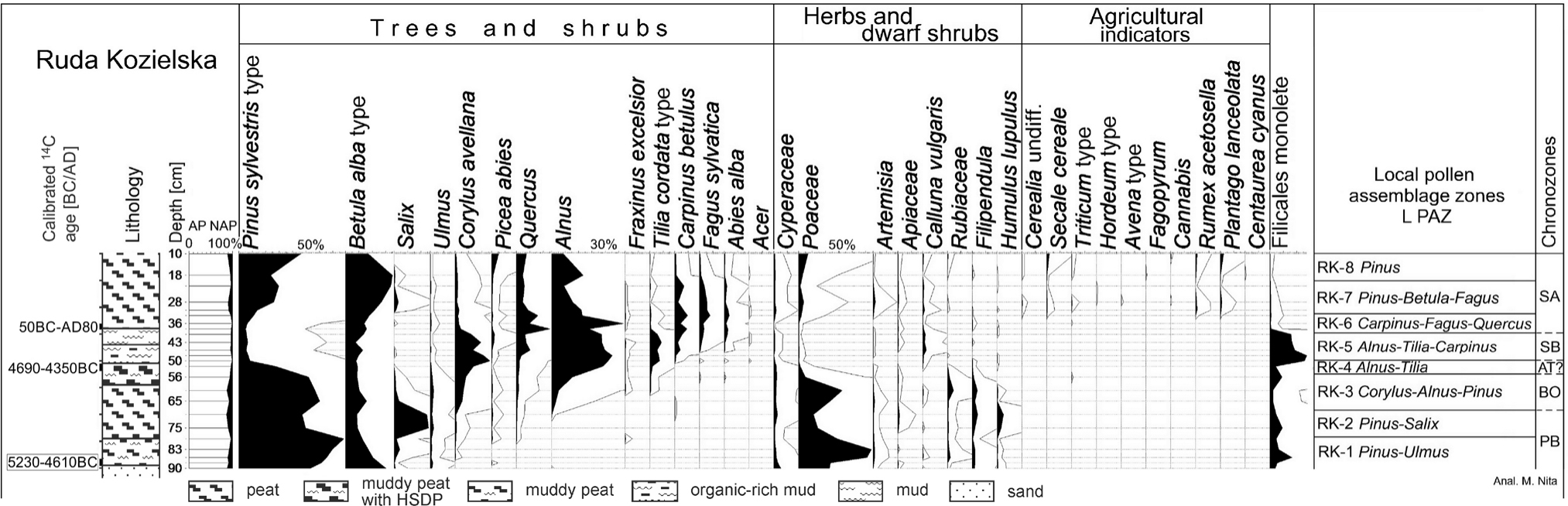

Fig. 2

Simplified pollen diagram from the Ruda Kozielska core, Ruda River valley.

Fig. 3

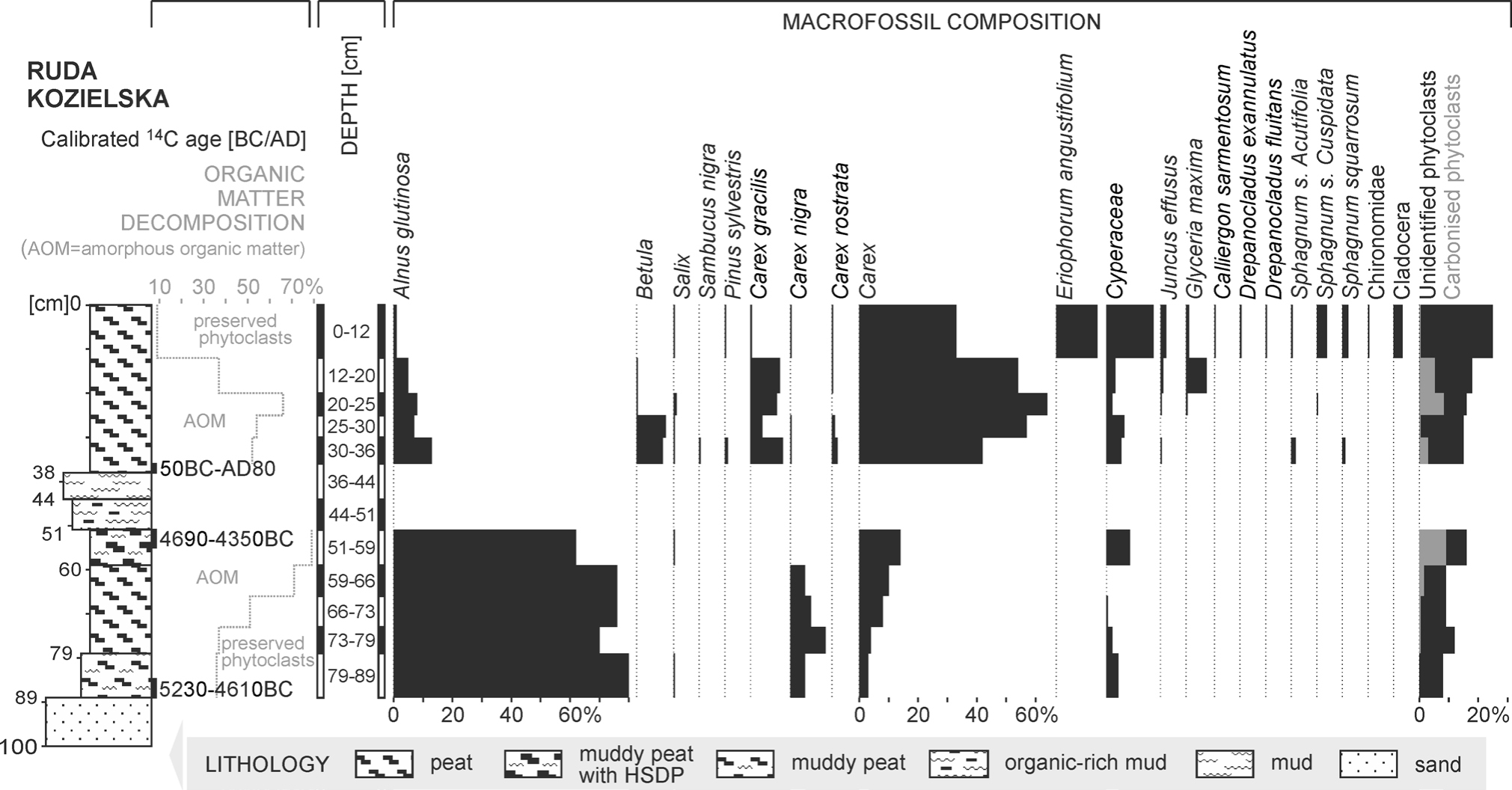

Macrofossil diagram from the Ruda Kozielska core, Ruda River valley.

Łany Małe Site

The HSDP roof in the Łany Małe core occurs at a depth of 58 cm. The use of the radiocarbon method confirmed the discontinuity in deposit accumulation. The dating of a sample from a depth of 63–58 cm yielded the result of 3510–2930 cal BC while the overlying peat layer from a depth of 58–53 cm was dated to 1050–790 cal BC. The presence of a stratigraphic gap is underscored in the pollen diagram by the occurrence of very large quantities of carbonaceous dust and just a few unidentifiable pollen grains at a depth of about 58 cm (Fig. 4). Pollen spectra from a depth of 75–60 cm still show the broad development of pine communities with a small share of oak (Quercus) and hazel (Corylus) characteristic of the early Boreal, and the beginning of the development of alder communities including elm (Ulmus) and ash (Fraxinus). On the other hand, deposits from a depth of 55–45 cm can be associated with the Subboreal period, e.g. on the basis of the presence of Carpinus, Fagus and Abies pollen. In peat below the depth of 58 cm, fragments of common alder wood and periderm clearly dominate (Fig. 5). Numerous wood remains are carbonised. The composition of the peat, which indicates the development of the Ribeso nigri-Alnetum forest community, does not change substantially in the sample located above the HSDP roof. Initially, only the increase in the share of periderm at the expense of wood can be noticed there. Trees only recede in the youngest mire development stage when sedge communities including Carex appropinquata spread (Wójcicki and Kloss, 2008).

Fig. 4

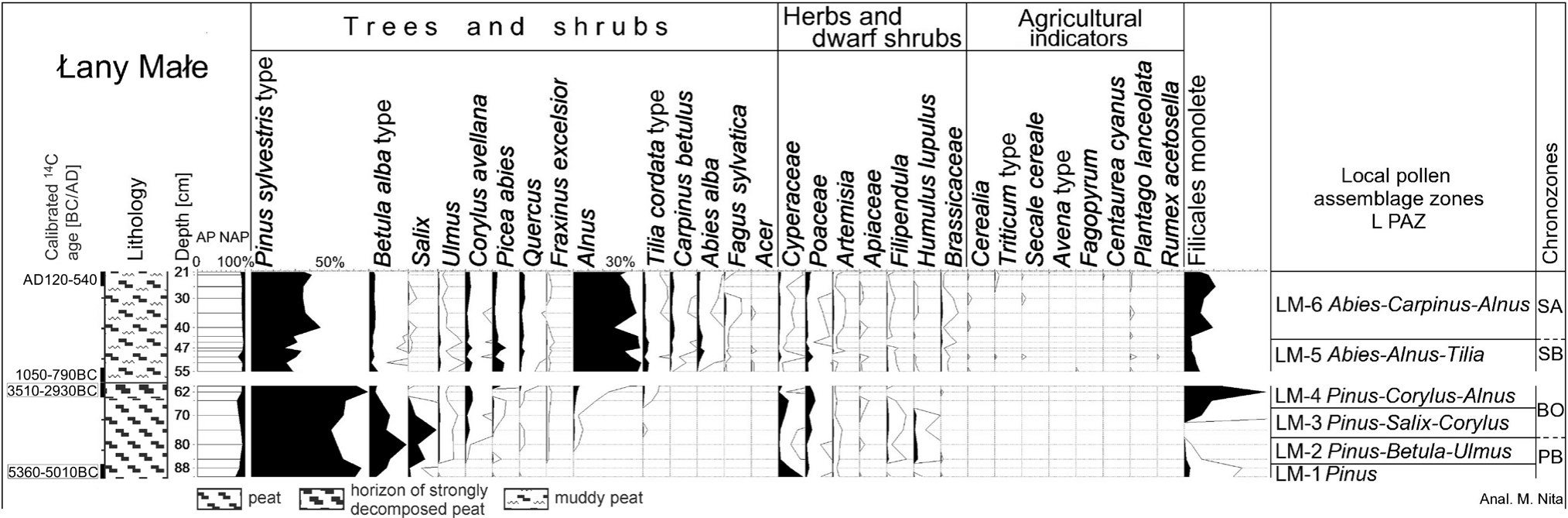

Simplified pollen diagram from the Łany Małe core, Kłodnica River valley.

Fig. 5

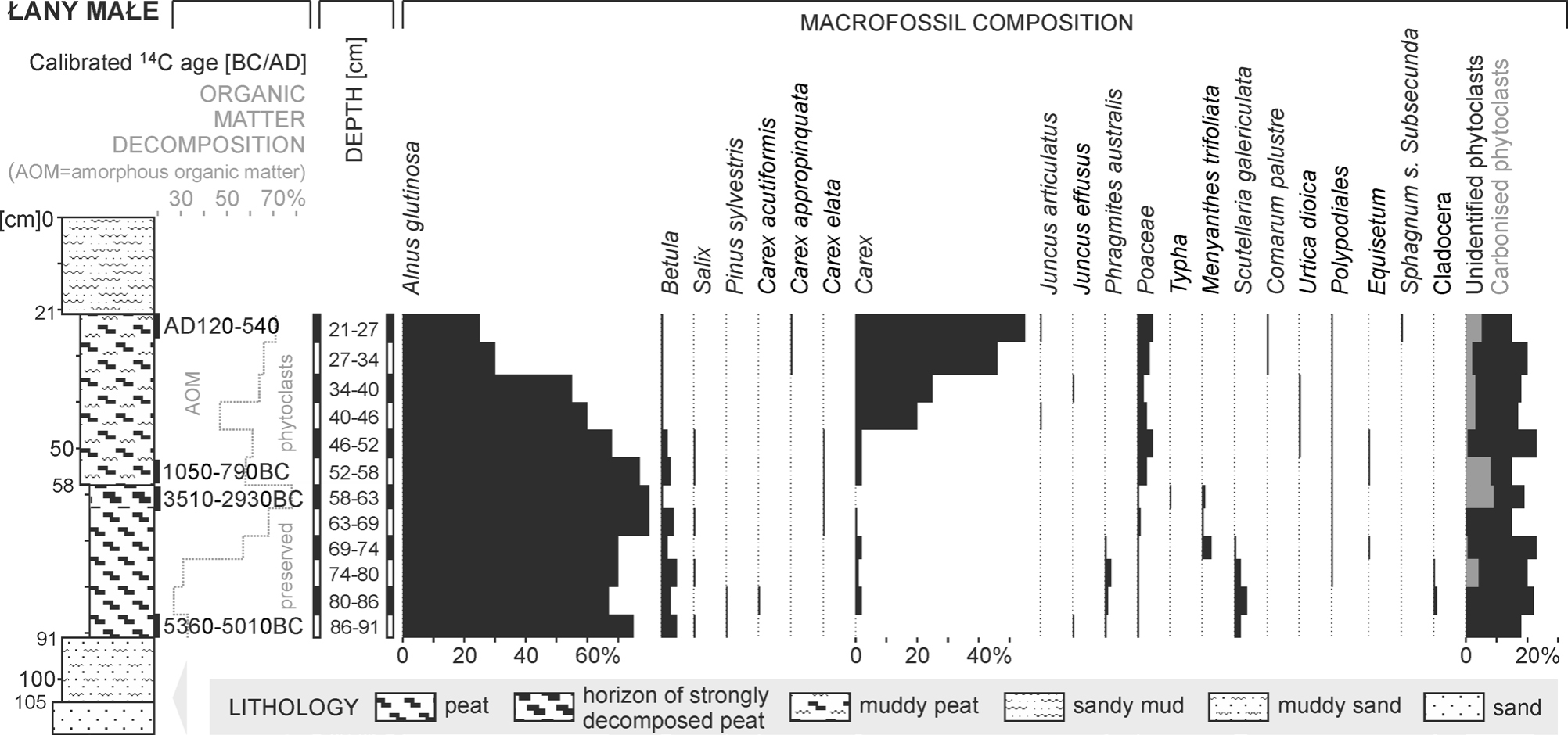

Macrofossil diagram from the Łany Małe core, Kłodnica River valley.

Sławięcice 1 Site

A layer of dark (5Y2.5/1), highly decomposed peat is present in the Sławięcice 1 core at a depth of 108–79 cm. The presence of a hiatus was confirmed by palynological means. The analysis of a sample from a depth of 80 cm revealed the presence of a non-pollen layer containing large quantities of carbonaceous dust (Fig. 6). The pollen spectrum of deposits from a depth of 85 cm indicates a significant share of pine in the forest communities, which is characteristic of the early Holocene, and insignificant shares of alder, hazel and oak. On the other hand, the presence of Carpinus, Fagus and Abies pollen in samples collected at a depth of 75–65 cm suggests a correlation with the late Holocene. In the light of macrofossil analysis (Fig. 7), the upper HSDP layer is dominated by Alnus glutinosa wood which, given the presence of Rubus idaeus drupelets above, appears to provide evidence for the development of a Ribeso nigri-Alnetum swamp forest. Radiocarbon dating of the 84–79 cm layer yielded a result of 2460–1960 cal BC. This is overlain by slightly lighter (7.5YR2.5/1) peat still containing a high wood content, which is characterised by an increase in the share of alder periderm and sedge rootlets. Radiocarbon dating of a sample from the 79–77 cm layer yielded a result of 350–50 cal BC. With time, the trees receded from the mire and were succeeded by sedge communities with species (C. elata and C. gracilis) characteristic of phytocenoses from the Magnocaricion alliance.

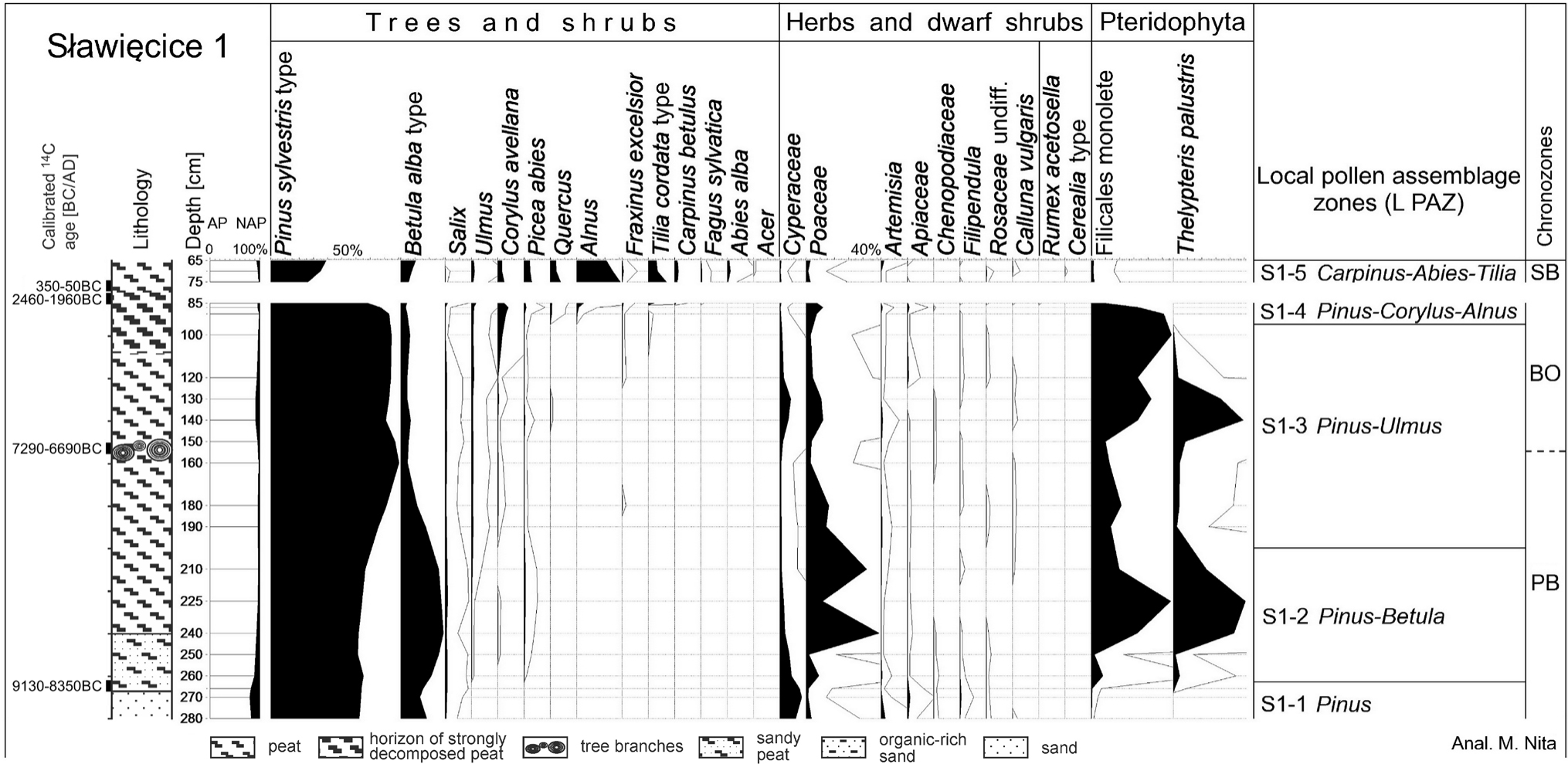

Fig. 6

Simplified pollen diagram from the Sławięcice 1 core, Kłodnica River valley.

Fig. 7

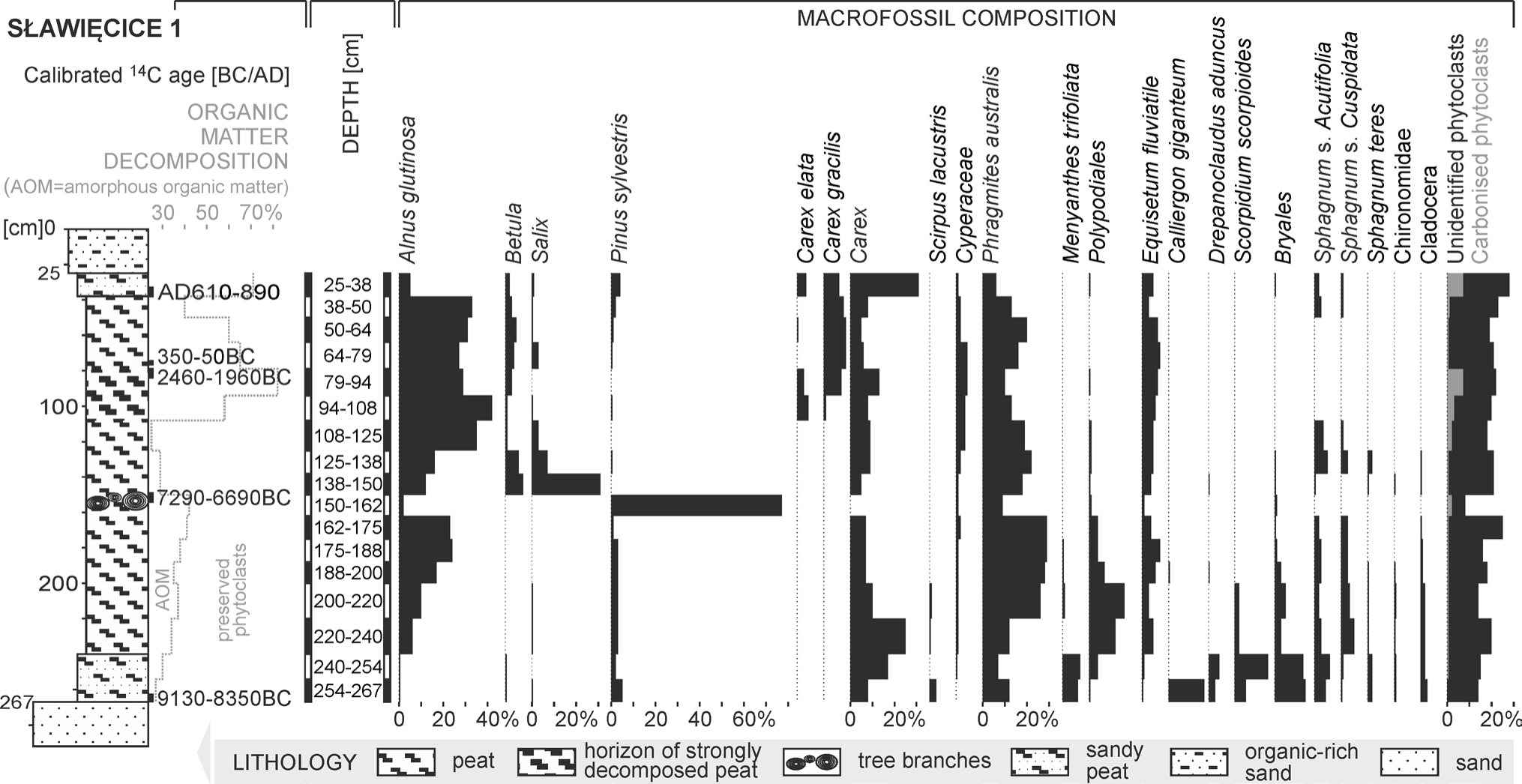

Macrofossil diagram from the Sławięcice 1 core, Kłodnica River valley.

Sławięcice 2 Site

The highest share of amorphous matter (63%), accompanied by a high share of carbonised phytoclasts (7%), was recorded in a level of dark (5Y 2.5/1) alder peat at a depth of 84–72 cm. Macrofossil analysis demonstrated the domination of common alder wood in this level, accompanied by Carex and Equisetum rootlets and epidermis. Radiocarbon dating of this layer produced a date of 3100–2690 cal BC. Like the previous site, the Sławięcice 2 core also includes a non-pollen layer at a depth of about 80 cm that includes a large amount of carbonaceous dust. Pollen spectra of the deposits underlying this layer can be correlated with the older part of the Boreal period while the overlying deposits indicate the late Holocene (Fig. 8). Carpological material (Filipendula ulmaria, Sambucus nigra and Rubus idaeus seeds), which was dated to cal AD 600–680, was obtained from the overlying, less degraded peat at a depth of 70–72 cm. In this sample, the shares of amorphous matter (47%) and carbonised phytoclasts (5%) decreased (Fig. 9). The share of sedge remains temporarily increased at this depth in the peat sequence but the macrofossil composition indicates that a forest community dominated by common alder was still present on the mire. Only from a depth of 32 cm upwards is the complete disappearance of trees from the mire noticeable coupled with the development of sedge-moss communities with a significant share of Sphagnum mosses. This phase was preceded by the appearance of Cladocera remains as bioindicators of an aquatic environment.

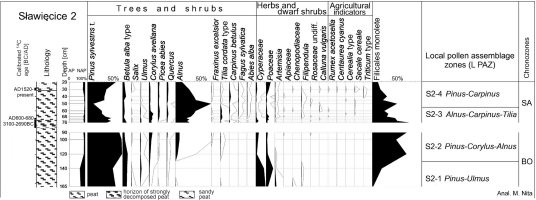

Fig. 8

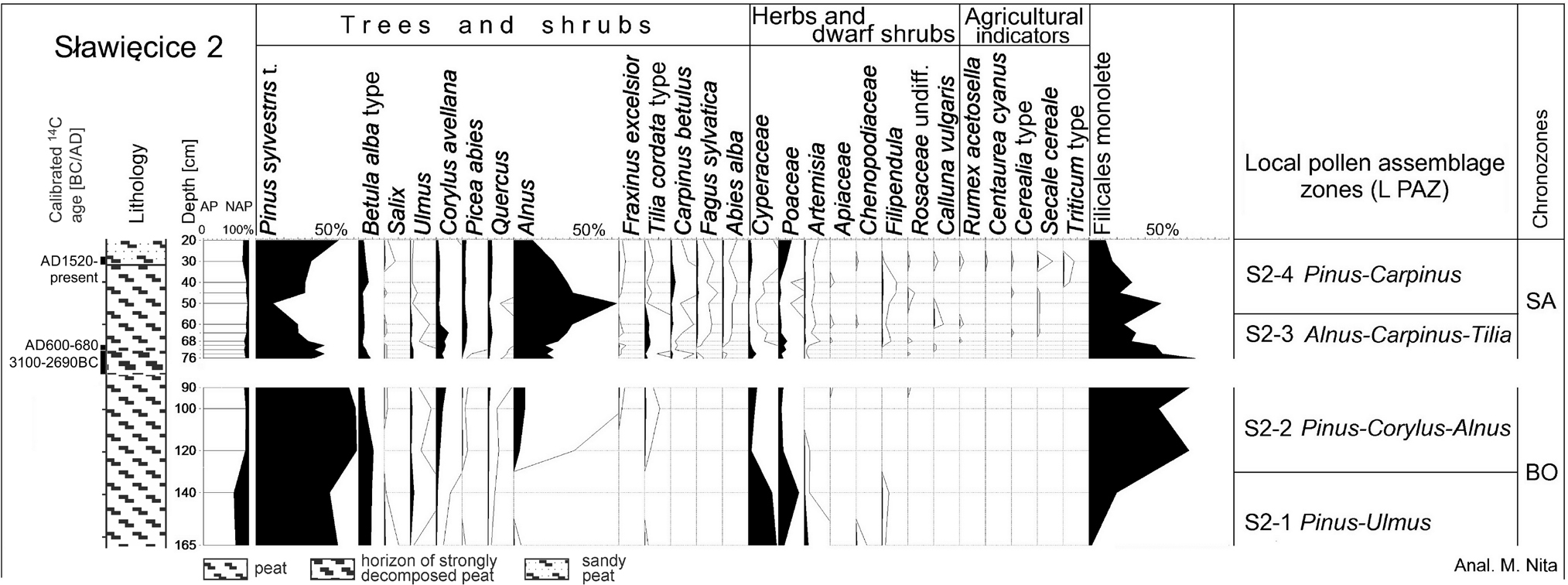

Simplified pollen diagram from the Sławięcice 2 core, Kłodnica River valley.

Fig. 9

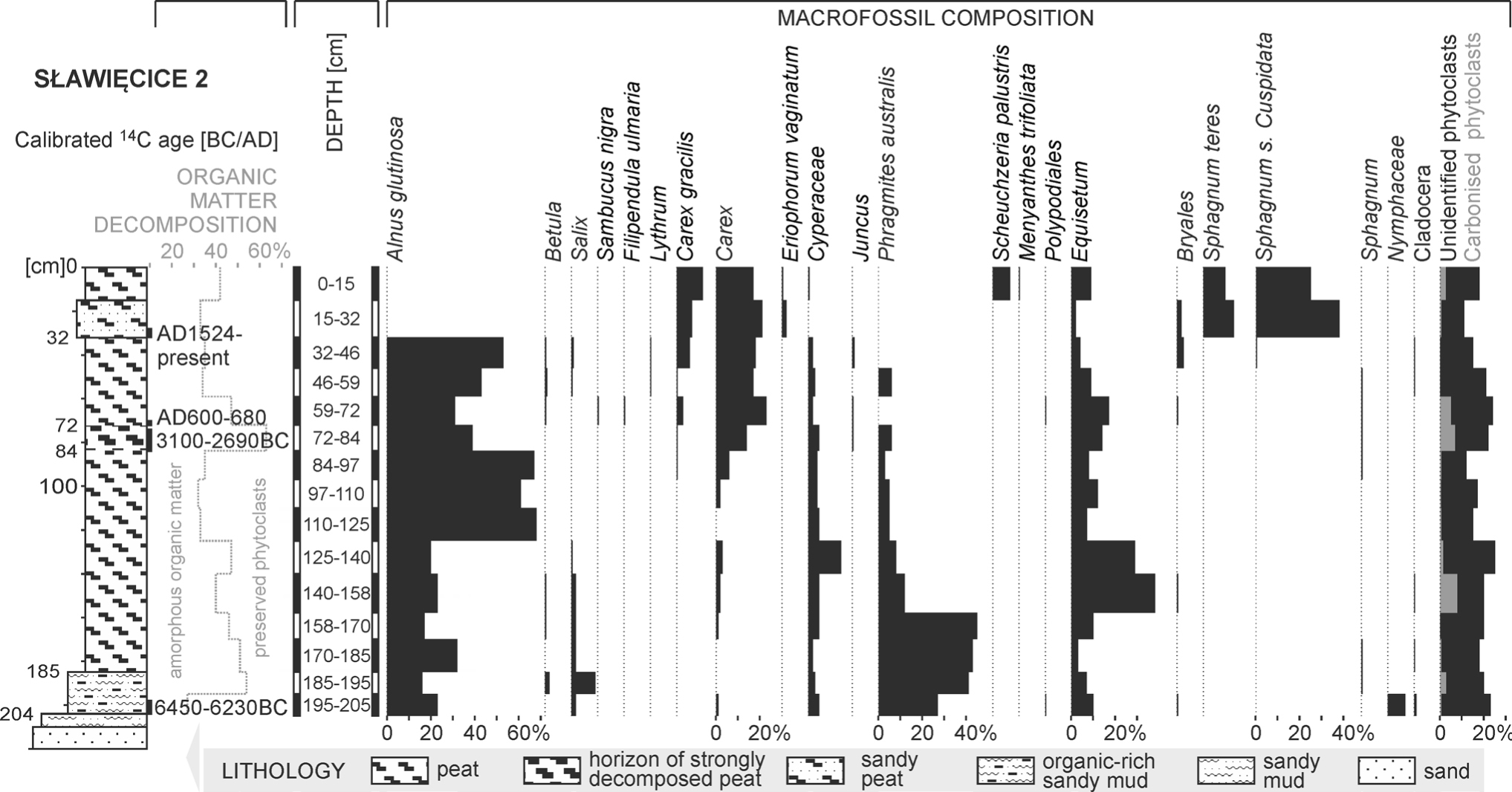

Macrofossil diagram from the Sławięcice 2 core, Kłodnica River valley.

The endo/exogenous conditions accompanying the selective development of HSDP in the mires of the Racibórz Basin

The mid-Holocene peat decay was not recorded in all peat sequences in the Racibórz Basin. In the light of radiocarbon dating, it is evident that during the Atlantic Period a relatively high accumulation rate of ca. 1 mm/year was exhibited by the Ujazd/Zandrzyny site where, given higher habitat humidity, Phragmitetea class communities developed (Wójcicki, 2013). These were dominated by common reed and sedges. On the Żywocice site, no HSDP formed in the middle Holocene despite the development of a forest dominated by alder at that time (Wójcicki, 2000). These examples show that HSDP could only form where a proper combination of climate and local factors existed. First of all, the mires had to be at an advanced stage of development so that the plant communities overgrowing them could respond to signals of hydrological change.

Paleobotanical analyses demonstrate that HSDP could develop in shallow mires formed both as a result of the paludification of distal floodplains (as in the case of the Łany Małe site) and the terrestrialisation of relatively deep oxbow lakes (as at the Sławięcice 1 and Sławięcice 2 sites). A common feature of all the study sites is that peat decay took place at the stage when a forest swamp community dominated by common alder developed. These observations contribute to the broader debate concerning the productivity of alder swamps (see Tobolski, 2000). While the peat-forming abilities of alder forest are unquestionable (Marek, 1965), in the forest phase of mire development a decrease in accumulation rate or even the decay of previously accumulated deposits is usually observed (e.g. Grosse-Brauckmann, 1986; Harmata, 1995). The reasons for this state of affairs can be complex. Alder swamps receive direct precipitation as well as groundwater inflow, with a small role of inundation waters (Matuszkiewicz, 2005). The consequence of such water relations may be the periodic advantage of aerobic processes in the acrotelm layer, with peat aeration in forest habitats potentially increased due to the penetration range of tree root systems (Tobolski, 2003). Either way, the key issue for the development of HSDP is the fact that the spread of alder forests in river valleys and the hydrological changes observed in North-Western and Central Europe (within the zone affected by the North Atlantic) were synchronous events. The results of paleohydrological studies provide ever more evidence that in the more recent part of the Atlantic period, water levels lowered in both lakes (e.g. Ralska-Jasiewiczowa and Starkel, 1988; Magny et al., 2003) and mires (e.g. Rybníček and Rybníčkova, 1987; Żurek et al., 2002; Caspers and Grosse-Braukmann, 2003). In central Poland, hiatuses during the Atlantic and Subboreal periods have been identified, inter alia, in the Bartochów, Ner-Zawada, Milanów, Korzeń, Bęczkowice, Ługi and Józefka cores (Forysiak, 2012). In southern Poland, hiatuses from the Atlantic period have also been found, including, inter alia, at the following sites: Nowa Huta in the Vistula River valley (Kalicki and Zernickaya, 1995), and Słopiec (Szczepanek, 1982) and Napęków (Ludwikowska Kędzia, 2000) in the Belnianka River valley. In the Roztoka A and B, Jasło and Tarnowiec cores (the Jasło-Sanok Depression), the accumulation of peat was interrupted or reduced (Harmata 1987; 1995).

After a period of peat decay, a return to peat accumulation was observed during the late Holocene in all the cores examined. Macrofossil analysis shows that changes in the peatland balance of productivity had already started at the time when swamp forests dominated by alder prevailed. The peat layers directly overlying the HSDP roof in the Łany Małe and Sławięcice 1 cores contain even more tree remains. The increase in the share of periderm could have been the result of the accumulation of above-ground remains on a long-term stable mire surface. Over time, the composition of the remains preserved in the peat, which resumed its accumulation, changed, reflecting the adaptation of plant communities to more humid habitats. In the sequences of deposits analysed, a shift was observed towards non-forest, sedge-moss communities belonging to the Magnocaricion alliance or the Scheuchzerio-Caricetea nigrae class. The increase in habitat hydration was confirmed by the appearance of bioindicators of an aquatic environment (Cladocera and Chironomidae remains). The directions of succession described above testify to the slow transformation of habitats under the influence of elevated water levels in mires. These changes cannot be explained as the effect of endogenous factors. They must have been caused by climate conditions or human impact. Radiocarbon dating indicates that they can be correlated with the appearance of settlements of prehistoric cultures in the study area: the Lusatian culture between the 9^th and 3^rd(?) centuries BC and the Slavic settlement from the 7^th/8^th century onwards (Abłamowicz and Śnieszko, 2001; Foltyn et al., 2004). At that time, significant deforestation had occurred, which must have affected water relations in the valley bottoms. However, pollen analysis does not provide conclusive evidence in this respect. Indicators of human activity appear in the Łany Małe core alongside the resumption of peat accumulation. At the Ruda Kozielska and Sławięcice 2 sites, pollen of grain, forage and weed species occurs slightly later than in the Łany Małe core. In general, it appears that the transition from the dry phase to the wet phase registered in Polish peat sequences was not a synchronous one (Fig. 10). According to Żurek et al. (2002), the increase in humidity occurred on the boundary between the Atlantic and Subboreal periods. However, the studies conducted in the Belnianka River valley indicate that the resumption of peat accumulation in the Słopiec II core started in the mid-Subboreal period (Szczepanek, 1982). According to palynological determinations, in the Napęków 8 core the accumulation of peat began between ca. 3800 and 2800 cal BC, but only gathered pace in the middle Subboreal period (Ludwikowska-Kędzia, 2000). The accumulation of peat in the Nowa Huta core in the Vistula River valley probably resumed during the Subboreal period (Kalicki and Zernickaya, 1995). On the other hand, the resumption of peat accumulation at most sites in central Poland, (including Bartochów, Ner-Zawada, Bęczkowice, Wilczków, Ługi and Józefka), is associated with the Subatlantic period. This only occurred in the Subboreal period in the Milanów and Korzeń cores (Forysiak, 2012).

Fig. 10

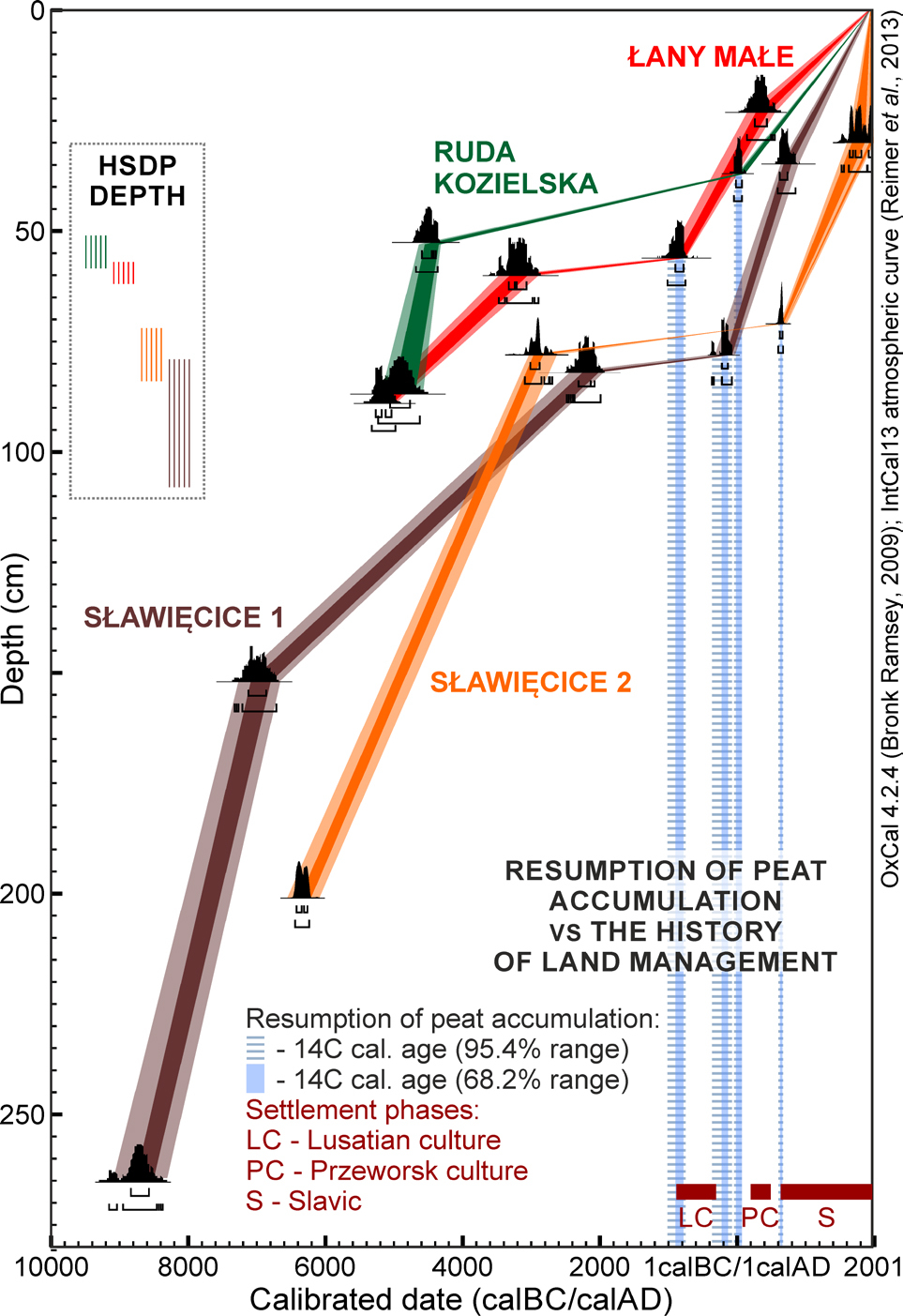

Age-depth models of the studied cores.

A model of HSDP formation and the problem of dating dry and wet phases in mires

The mechanisms that determine mire productivity sometimes make it difficult to date wet and dry phases in mires since ¹⁴C dating results are inconsistent with pollen data.

Particular methodological problems are related to the dating of dry phases during which HSDP form. Pollen spectra from a depth of 75–60 cm in the Łany Małe core enable the correlation of sediments with the Boreal period, which is inconsistent with the date of 3510–2930 cal BC (at a depth of 63–58 cm). A similar situation occurs at the Sławięcice 1 site where the date of 2460–1960 cal BC was obtained at a depth of 84–79 cm. While at a depth of 80 cm a non-pollen layer was present, just below it (at a depth of 85 cm) pollen spectra indicated the Boreal period. In the Sławięcice 2 core, pollen spectra from a depth of 100–90 cm suggest also an early Holocene age, which is inconsistent with the date of 3100–2690 cal BC (at a depth of 72–84 cm).The above results demonstrate that HSDP contain organic matter of different ages – both from the period in which the decay process took place (mainly intrusive alder wood) and older, usually strongly decayed matter from the degraded peat layer. The significant age difference between pollen analysis results and the ¹⁴C dates obtained indicates that the postsedimentological decay processes involved ever deeper levels of previously accumulated peat. Given the negative balance of peat productivity, the mire surface probably became lower (Fig. 11).

Fig. 11

Model explaining the causes of inconsistencies between ¹⁴C dating and pollen analysis as a result of HSDP development.

The situation at the Ruda Kozielska site could have been slightly different. There, pollen analysis demonstrates that deposit continuity was probably disturbed at a depth of 60–50 cm. The underlying deposits (at a depth of 70–60 cm) may be associated with the Boreal period, and the overlying ones (at a depth of 50–40 cm) – with the Subboreal period. Deposits from the top HSDP layer, at a depth of 55–51 cm, were dated to 4690–4350 cal BC, i.e. to the Atlantic period. In general, pollen spectra from that depth are not inconsistent with that date. On this basis, it can be assumed that at the end of the Atlantic period, the productivity of the Ruda Kozielska mire could have been balanced. Organic matter decomposition processes were mainly synsedimentological ones and complete mineralisation of the previously accumulated peat, which would have resulted in the lowering of the mire surface, did not occur.

Radiocarbon dating of the samples that directly overlie HSDP, and in particular the application of the AMS method to the carpological remains deposited under conditions of a positive balance of productivity, should in theory enable the determination of the age at which the wet phase began in the mire in question. However, the verification of the dates obtained using pollen analysis is not an easy matter, and in some places it is ambiguous due to the absence of clear diagnostic features, sedimentation discontinuity and limited deposit thickness.

Most doubts arise in connection with the Sławięcice 1 core where the resumption of peat accumulation was dated to 350–50 cal BC using the AMS method. On the other hand, the analysis results of pollen deposits lying at that depth, e.g. high levels of Tilia cordata type pollen (12%), suggest the Subboreal period. Correlation with the Subatlantic period – in accordance with the AMS date obtained – is also possible, since the high proportion of lime pollen may have been caused e.g. by local conditions in the vicinity of the site. On the other hand, similarly high levels of lime pollen with low shares of Carpinus, Fagus and Abies were found at the nearby Ruda Kozielska and Las Turbina (Wójcicki and Nita, 2016) sites just below the boundary between the Subboreal and Subatlantic periods. This is a fairly strong argument for correlating this part of the Sławięcice 1 core with the Subboreal period. However, even in this case the discrepancies between dating and pollen analysis results are not large. They could have been caused by a prolonged period of balanced productivity that preceded the phase in which peat accumulation resumed.

At the remaining sites, pollen analysis results appear to be broadly consistent with ¹⁴C dates. In the Sławięcice 2 core, the resumption of peat accumulation occurred in the 7^th century CE according to AMS dating. In the light of pollen analysis, a correlation between the deposits examined and the Subatlantic period cannot be ruled out, e.g. on the basis of the increase in the level of Pinus sylvestris type pollen. At the Łany Małe site, the resumption of biogenic deposit accumulation was dated to 1050–790 cal BC. The sample pollen spectrum points to the Subboreal period. The boundary between the Subboreal and Subatlantic periods within the sequence is presumably slightly higher and is represented by the decline in the levels of Tilia cordata type and Corylus avellana pollen. The low values of Carpinus, Fagus and Abies pollen recorded at the sites surveyed may be the result of over-representation of alder pollen. The resumption of peat accumulation in the Ruda Kozielska core occurred between 50 cal BC and cal AD 80 according to radiocarbon dating and this is consistent with the pollen analysis results. In the light of archaeological research, the agricultural colonisation of the lower reach of the Ruda River only commenced on a large scale in the Middle Ages (Foltyn et al., 2004), which may have contributed to the subsequent appearance of crop and synanthropic plant pollen in the pollen diagram.
